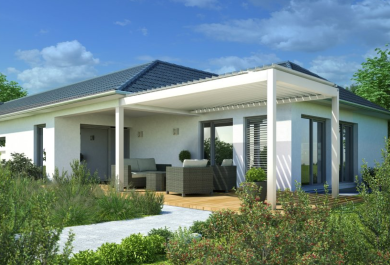

The Optidoor NUUN ECO pergola is a stylish shading solution equipped with automatic rotatable louvers that not only allow natural air circulation but also provide effective protection against the sun’s harmful rays and rain. This modern solution is perfect for those seeking comfort, elegance, and functionality for outdoor relaxation.
Technical specifications:
- Installation Forms: Freestanding or wall-mounted
- Materials: Extruded, powder-coated aluminum profiles
- Roof: Movable chambered aluminum louvers
- Louver Rotation Angle: Adjustable between 0˚ and 110˚
- Insulation: Closed roof tightly fitted to the frame, insulated by seals
- Water Drainage: Integrated drainage system in the post
- Accessories: LED linear lighting, heaters, Zip Screen side shading blinds, cascade sliding doors (dedicated Slide Glass system)
- Structure: Pre-fabricated, easy-to-assemble profiles with 90° angles
- Aesthetic Add-ons: Optional raised crown covering the ends of the open louvers and operating mechanism, with no visible fasteners
- Quality: The NUUN ECO pergola is made from premium aluminum materials that withstand external factors, ensuring durability and reliability.
Overhang Options:
- Standard NUUN ECO pergola structure – 75 mm
- NUUN ECO pergola with raised crown covering louver edges and operating mechanism – 150 mm
COLOR
NUUN ECO pergolas are available in a wide range of colors, including the full RAL palette, textured colors, Optidoor Wood Color Effect wood-effect colors, Optidoor Loft View stone-effect colors, dual-color interior-exterior combinations, and anodized finishes. Quality and durability are guaranteed by the Qualicoat 1518, Qualideco PL0001, and Qualanod 1808 certifications.
Optidoor NUUN ECO Specifications:
|
Description |
Wall-mounted |
Freestanding |
|
Max Width |
4,000 mm |
4,000 mm |
|
Max Overhang |
7,010 mm |
6,860 mm |
|
Max Height |
3,000 mm |
3,000 mm |
|
Wind Pressure |
500 Pa (100 km/h wind) – perpendicular to the roof plane |
For structures equipped with a Zip Screen blind, the blind must be raised.
NUUN ECO – Additional Options:
- Zip Screen Blinds: Available in a wide selection of high-quality transparent and opaque fabrics, perfectly matching the style and design of the building.
- Slide Glass System: Ideal for non-insulated glass structures. With minimal visible aluminum profiles, this system offers a clean design and optimal light transmission.
NUUN ECO – Accessories:
Weather Sensors: Rain, wind, and snow sensors automatically close the blinds during adverse weather, protecting terrace furnishings and ensuring comfort.
Heaters: Modern and safe heating solutions, controllable via radio remote or app.
Linear Lighting: White linear lighting available in the pergola louvers and frame. The wiring is hidden aesthetically within the structure, with dimming control available. Lighting can be controlled via remote or mobile app.
Automation: The innovative bioclimatic pergola structure allows for an automated control system, making the pergola even more convenient. Control is possible via remote, mobile phone, or connection to a smart home system, ensuring maximum comfort.
