Sound Insulation
43 (-2,-4) dB
Thermal Insulation
Uf ≥ 0,57 W/m2K
Color Options
RAL color chart, textured colors, wood-effect colors, stone-effect colors, anodizing, dual-color interior-exterior options
Burglary Protection Level
RC2 available
Our premium profile offers the highest level of benefits of aluminum windows and doors, featuring outstanding thermal insulation and a modern, sleek design.
Our three-chamber aluminum system is an excellent choice for windows with enhanced thermal insulation and meets the strict requirements of the Passive House Certification, where Uw value < 0.8 W/m²K is required for heat transfer coefficients.
This system meets the highest thermal performance requirements for glass façades and window structures both in Europe and globally. The Genesis 90 system is certified by the Passive House Institute (PHI) in Darmstadt and fully complies with the stringent standards for passive houses.
Our system is available in three thermal variations: – Standard (without insulation)
– “i” version, with insulation around the glass
– “i+” version, with insulation inside the profiles and around the glass
To ensure proper structural design, various frame and sash profiles, mullions, and reinforcement profiles are available.
Technical specifications:
- Frame thickness: 90 mm
- Sash thickness: 99 mm
- Glazing thickness:
- Opening: 20-83 mm
- Fixed: 16-74 mm
- Sound insulation: From 43 (-2,-4) dB
- Thermal insulation: Uf ≥ 0.57 W/m²K
(The thermal transmittance of the window depends on the profile composition and glazing) - Design options: Fixed, opening, tilt, tilt-and-turn
- Colors: RAL color chart, textured colors, wood-effect colors, stone-effect colors, anodizing, dual-color interior-exterior options

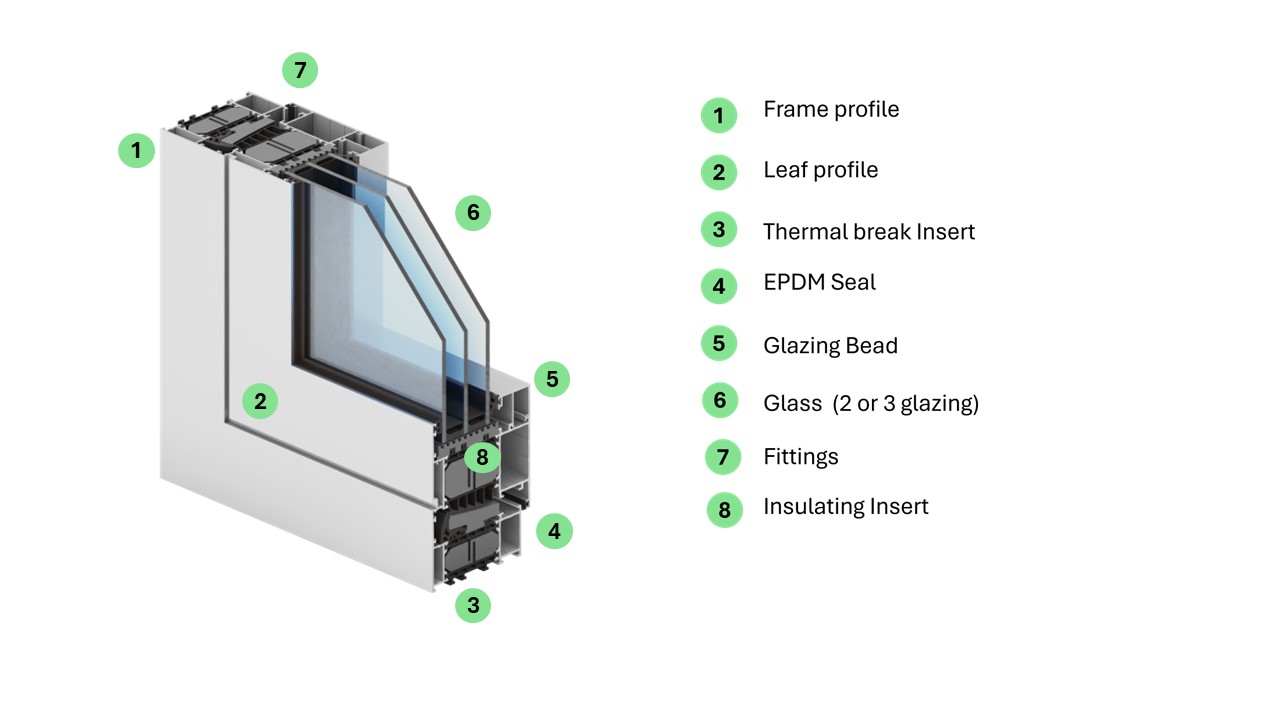

Window structure composition:
